Dimension One 5.5kW Laing Square Back Low Flow Heater Assembly 26-C3552-1-7T-K

Heater Assembly, Low Flow, Laing, Square Back, 5.5kW, D1, w/Auto Reset TCO & Flow Switch, Titanium, Used with Dimension One, Jacuzzi

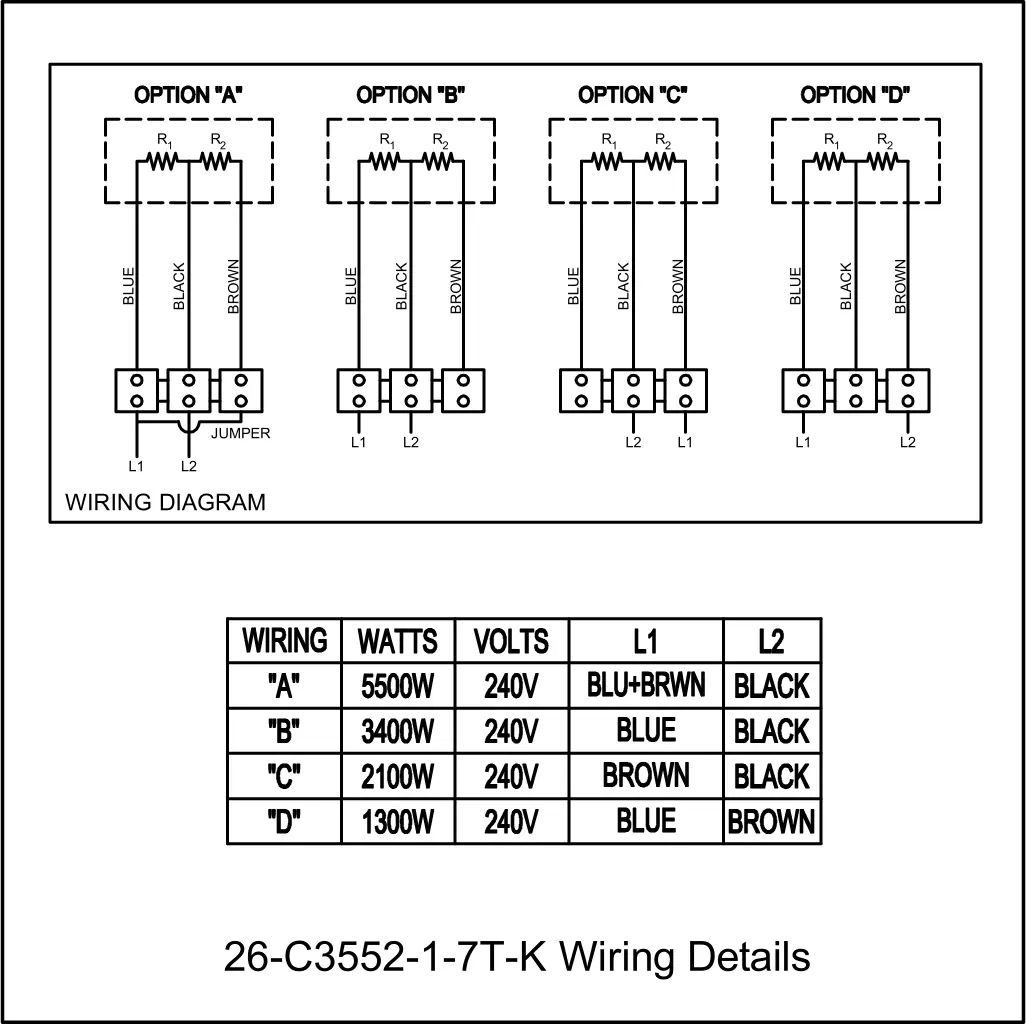

NOTE - This heater uses a dual elements in heater tube. Elements are 3.4kW & 2.1kW to acheive the 5.5kW running wattage.

FEATURES:

• Laing, Squareback Style, 1” tube
• Built-in Auto Reset Thermal Cut Out (TCO),
• Mounting plate
• 4 Wire
• Dual Titanium element
• Used with Dimension One, Jacuzzi

*Replaces the following: C3552-1, SHH-5500-NH-6871, SHH-5200-NH-6785, NHH-5500-NH-7328, SHH-5500-NH-6771

Specifications

Brand:

Dimension One, Jacuzzi Spas

Low Flow Features:

Laing Squareback style, 1" tube

Wattage:

3.4kW
